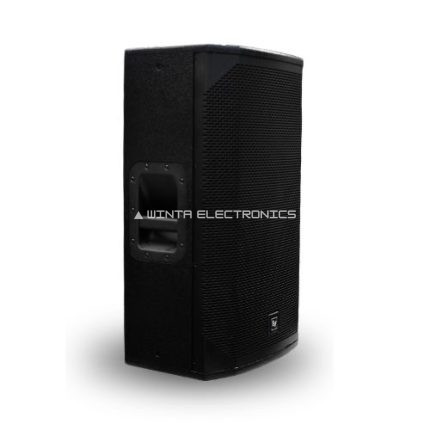

Electro-Voice EKX-115 Passive Loudspeaker
The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology – all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.
Ideal for portable and installed applications
Lightweight, compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight M10 threaded mounting points (full-range models), aluminum pole-mounts, and all-metal handles.
Subs feature large slot ports for low distortion and excellent bass extension, and are equipped with a metal grille reinforcement bar.
EV 115 white speaker
- Sensitivity: 95 decibels
- Enclosure material: Medium-density fiberboard 20, internal support, and Textured black
- Frequency response (-3dB): 75 hertz to 18 kilohertz
- Frequency Response (-10dB): 50 hertz to 20 kilohertz
- Recommended high-pass frequency: 40 hertz
- Maximum Sound Pressure Level: 134 decibels
- Coverage angle horizontal & ts; vertical (-6dB): 90 degrees & ts; 50 degrees
- Low-frequency driver: EVS-15K, 381 (15″) bass single $
- High-frequency driver: DH-1K, 39 (1.5″) titanium diaphragm compression driver
- Crossover Frequency: 1.7 kilohertz
- Nominal impedance (): 8 ohms
- Minimum Impedance: 7.4 ohms
- Connector type: Dual NL4
- Grille: 18-gauge

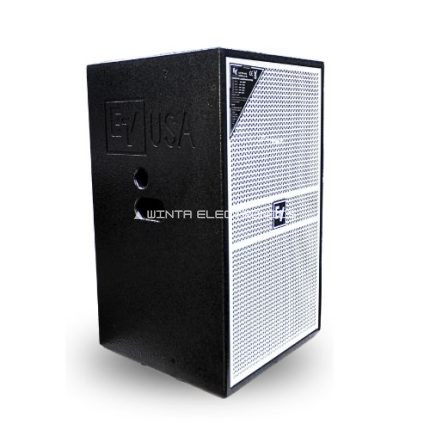

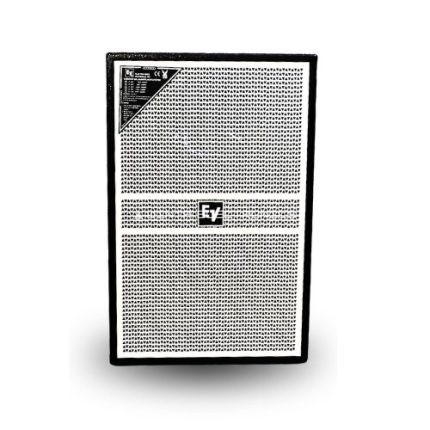

EV DS115 USA Electro-Voice 15”
- High-Power Performance – 500W RMS, 1000W continuous, and 2000W peak power
- 15-Inch Woofer – Delivers deep midrange and strong bass response
- 1.75-Inch Titanium Compression Driver – Provides clear high frequencies
- Wide Sound Coverage – 90° x 60° dispersion for even sound distribution
- High SPL Output – 134dB max SPL for powerful sound projection
- Durable & Road-Ready Build – Designed for reliable performance in any environment
- Ideal for PA Systems – Perfect for churches, concerts, DJs, and outdoor events
- Compact & Easy to Set Up – Dimensions: 27.6 x 17.6 x 16.6 inches
EV ELX 115 speaker
- ELX115 performance with self-amplification
- 44 Hz – 20 kHz frequency range
- Lightweight, cool-running 1000 W Class D amp
- Biamped with 24 dB/octave crossover
- Transducer protection
- Bypassable high-pass for external subwoofer
- XLR, TRS, and RCA input connections
- Versatile gain, mixing, and processing controls
- Pre- or post-mix parallel outputs
